30-50" Heavy Duty Tilt TV Bracket

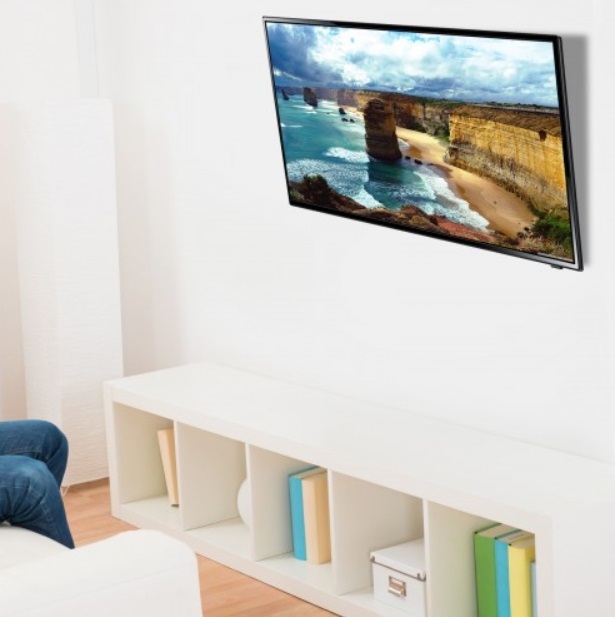

Mount your TV on the Wall

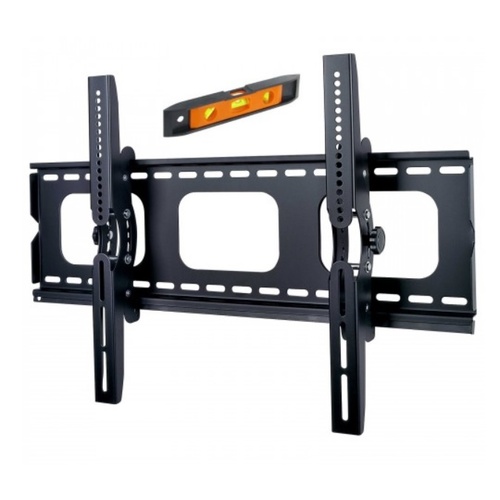

This bracket is the perfect way to wall mount your TV. It's rated to hold up to 60kg and its size makes it suitable for screens that are approximately 30 to 50 inches. It features adjustable tilt, it's designed to be compatible with Australian stud walls, and it's even padlockable to prevent theft (padlock not included). It includes a bunch of screws, a user manual and a spirit level... so installation is easy!

- For screens approx 30-50"
- Holds up to 60kg
- Adjustable tilt (-15° to +15°)
- Easy to install
- Includes a bonus spirit level
- Designed to span Australian studs
- Includes screws suitable for most installations
- Padlockable to prevent theft of your TV (padlock not included)

Will it fit my TV?

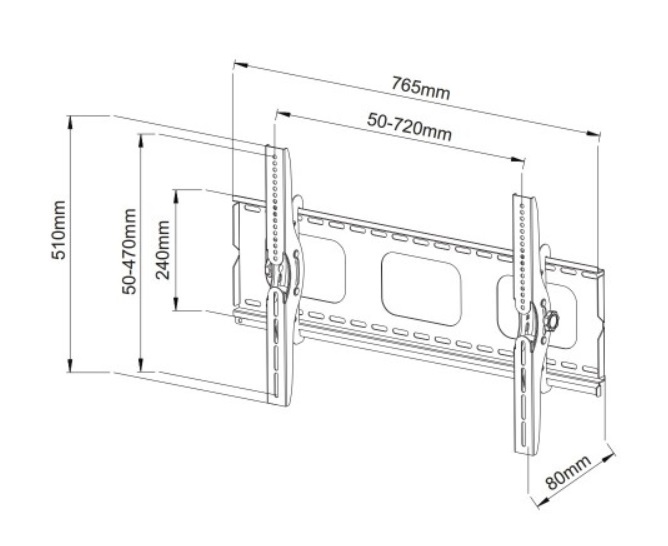

Probably! There are three things to check to be sure. Your TV should be at least 760mm wide and at least 530mm tall (otherwise the bracket will be visible from directly in front of the screen). The four threaded mounting holes on the rear of your TV should be no more than 720mm apart horizontally (side to side) and no more than 475mm apart vertically (top to bottom). Finally, your TV just needs to weigh less than 60kg.

TV Screen SizeTV WeightTV Mounting Holes

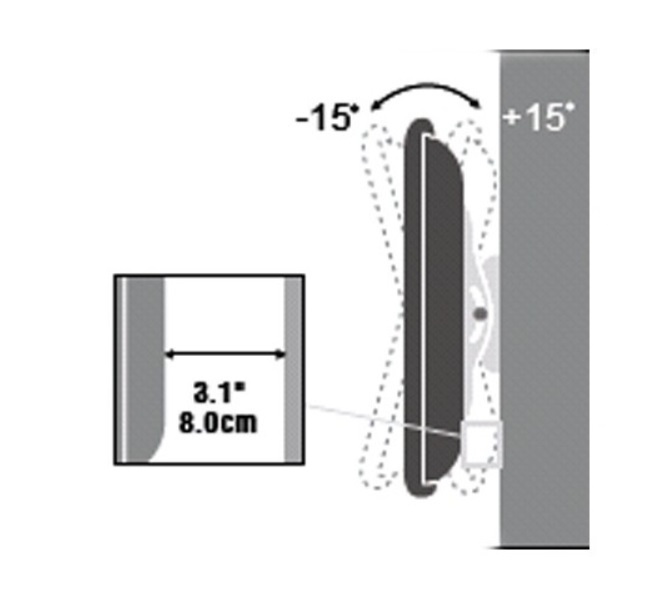

Adjustable Tilt
This bracket allows you to angle your TV forwards to prevent glare/reflections or just to better suit your viewing position. It also tilts upwards, which can make it much easier to insert all your cables after the TV is on the wall.

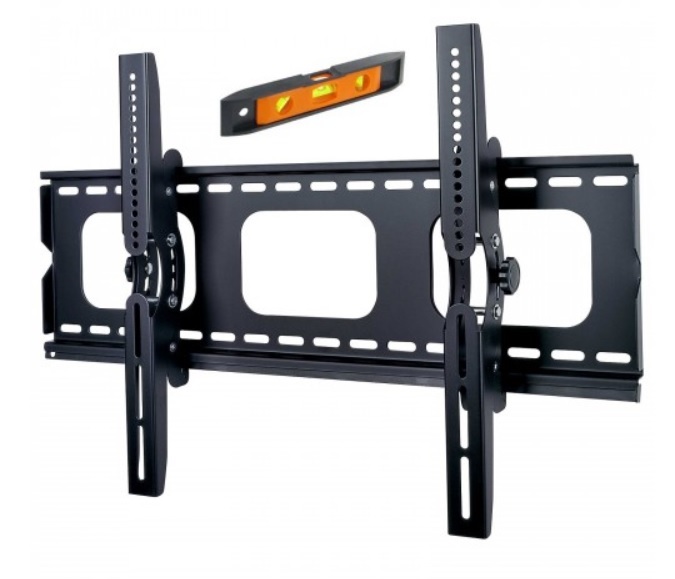

Spirit Level Included
We include a spirit level to help you with accurate installation of the bracket.

Screws Included
We include a variety of fixings (screws, bolts, spacers) which are suitable for most installations. Unfortunately, due to the enormous range of TV brands and models available, we're unable to guarantee that the included fixings will suit every installation.

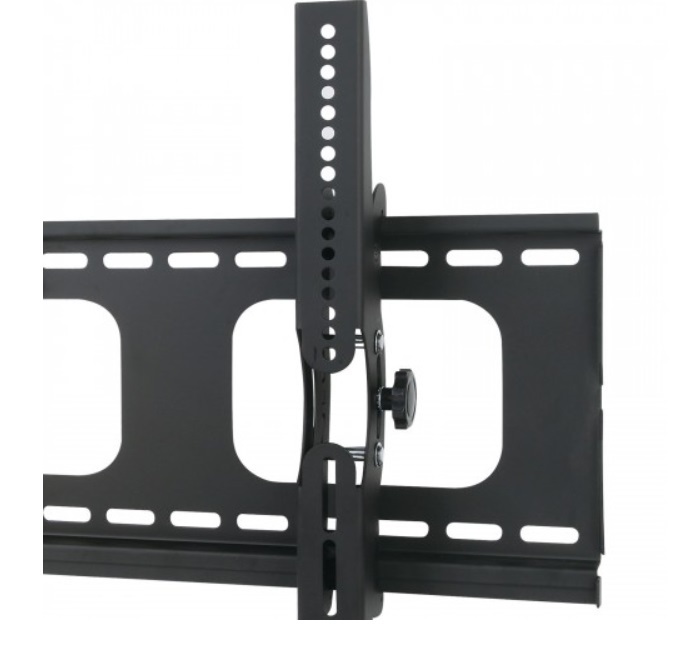

This bracket can be locked with a padlock (not included) to prevent theft of your TV. This is especially useful if the TV will be mounted outdoors or in a public place.

Mount it to Something Strong Enough!
As with all wall brackets, it is essential that this bracket is attached to the timber studs if mounting on a plasterboard wall. Of course, it can also be mounted to brick/concrete walls.


Shipping Weight 2.0000kg
Shipping Width 0.350m
Shipping Height 0.080m
Shipping Length 0.530m
Shipping Cubic 0.014840000m3
