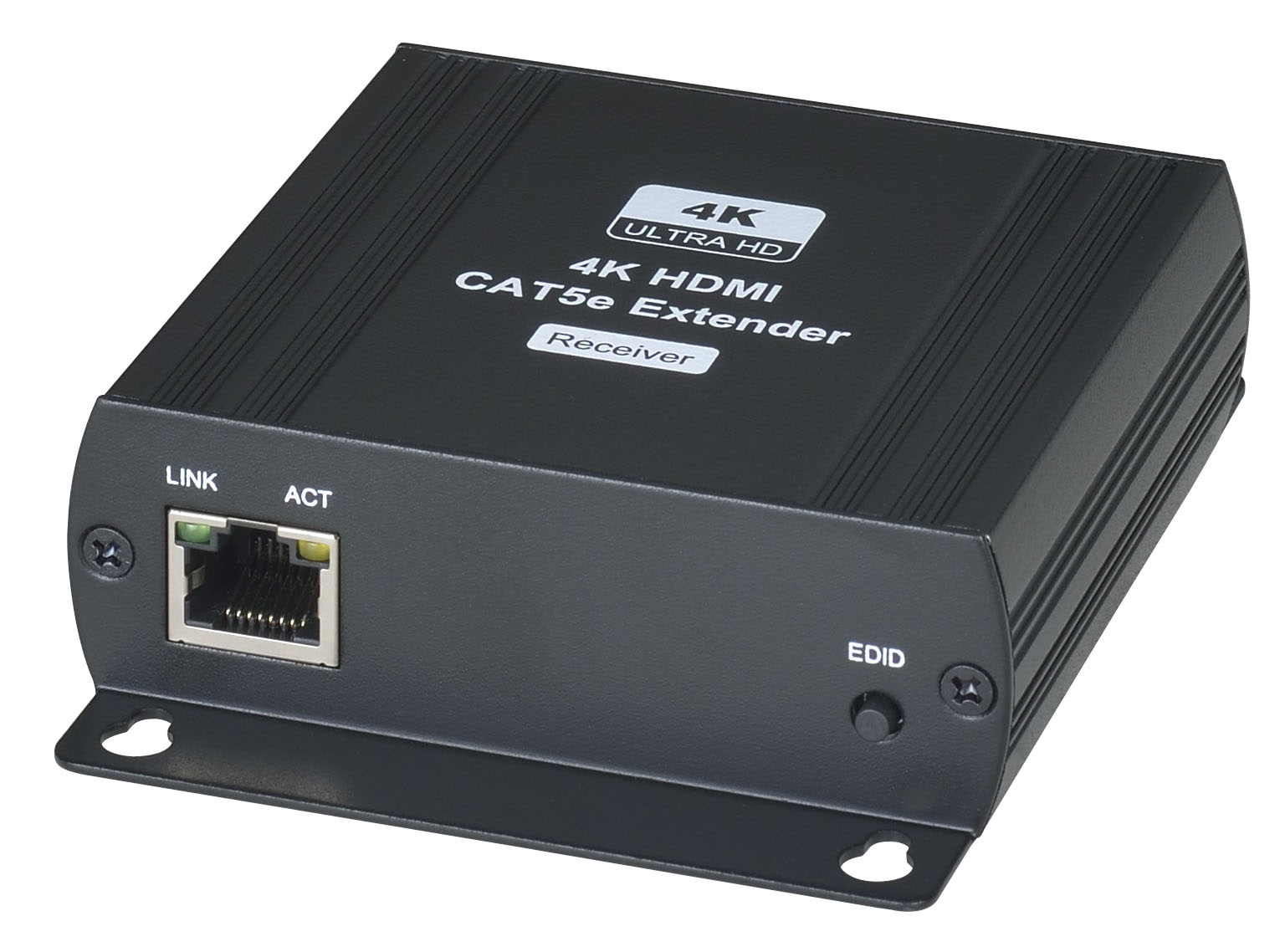

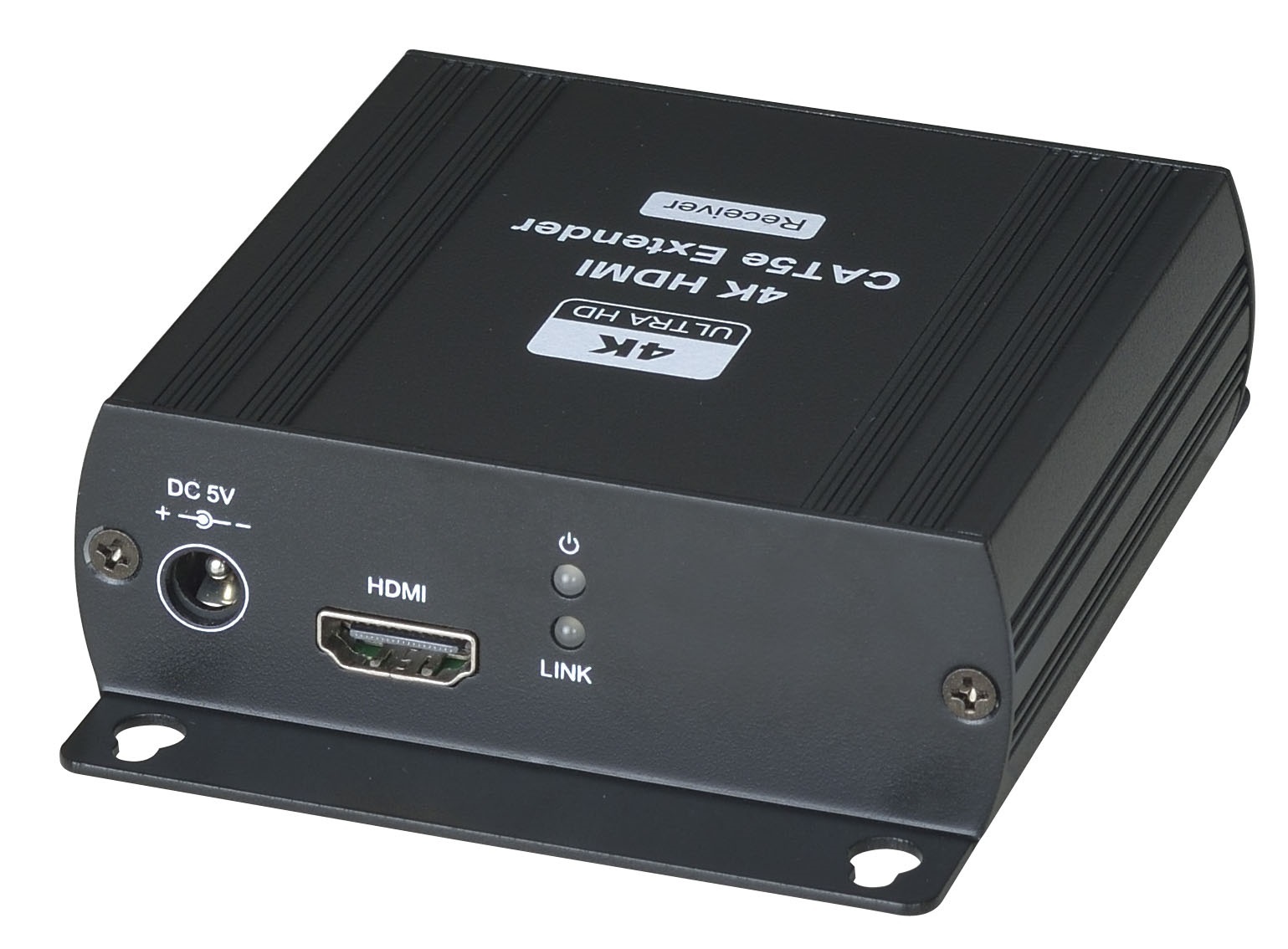

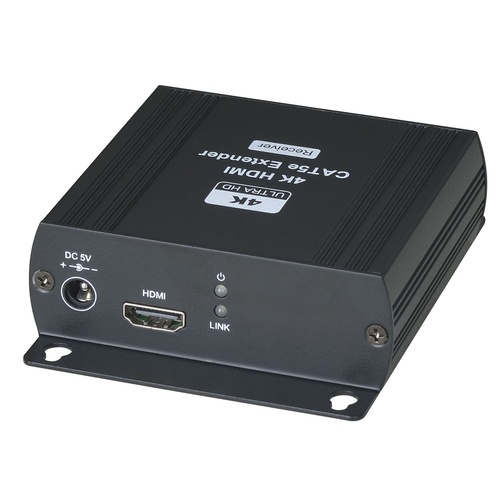

4K HDMI CAT5e/CAT6 Distribution Extender

Reciever only


  • Extends 4K UHD HDMI signal over one CAT5e/6 cable.
  • Support resolution up to 1080P@60hz, 4K@30hz 4:4:4,1920x1200@120Hz.
  • HDCP 1.4 compliant.
  • Audio support up to LPCM7.1@192Khz.
  • Transmission range up to 120M over CAT5e, 140M over CAT6.

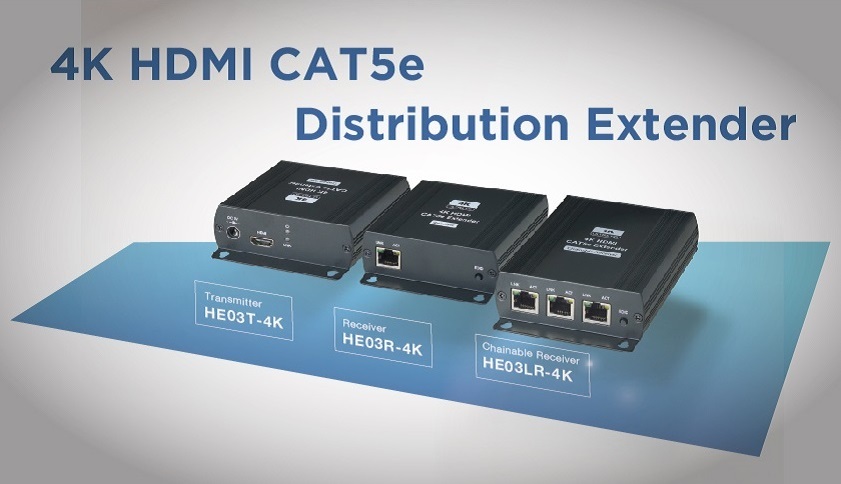

  • Two receiver for option: HE03R-4K , HE03LR-4K

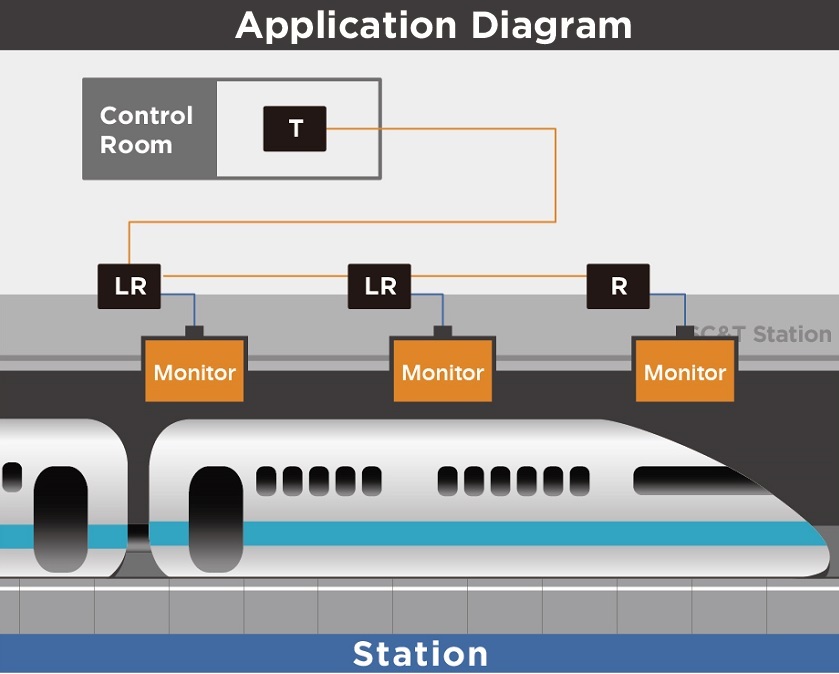

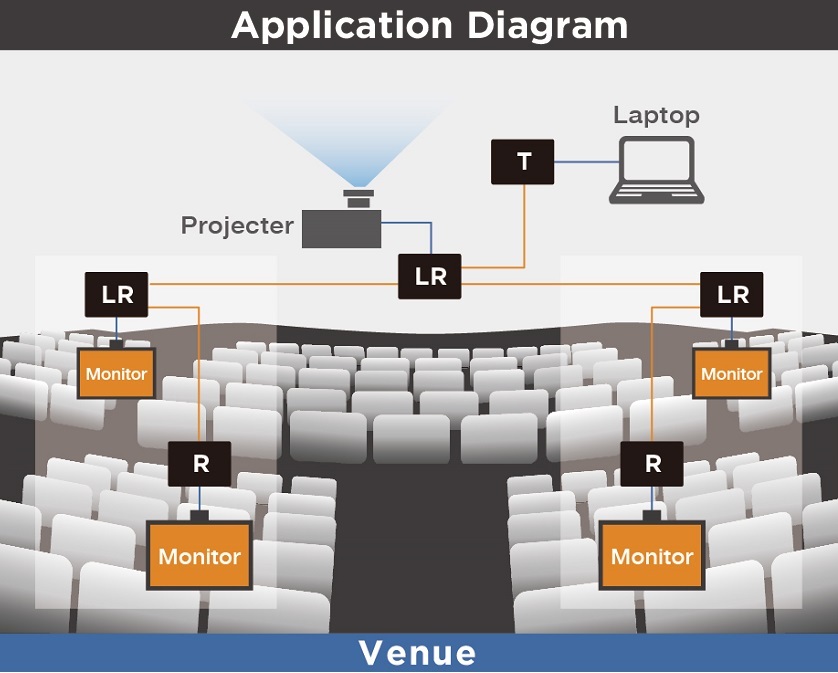

  • HE03LR-4K: HDMI CAT5e receiver built in 1 x HDMI output and 2 x RJ45 output. Allow to chainable to another HE03LR-4K for longer distance and multiple displays.

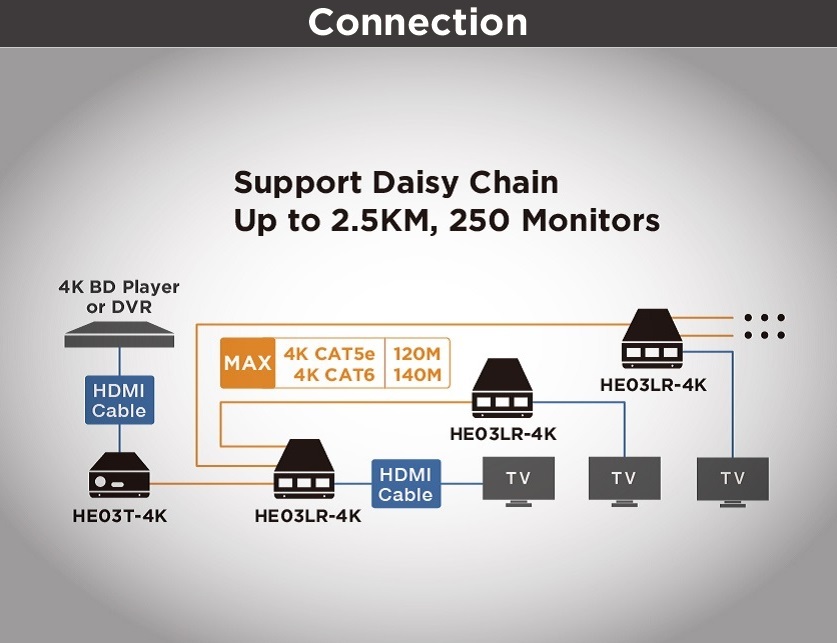

  • HE03LR receiver could be chainable up to 250 displays, distance with 2.5KM max.
  • Plug and play for easy operation.
  • Optional model: SR01 signal repeater for longer distance application.

In the Box:

  • 1 X Receiver
  • 1 X Power supply
  • 4 x Screws and wall plugs.

Please Note: You will also need to purchase HE03T-4K-4 Transmitter


SKU HE03R-4K-4
Shipping Weight 0.4750kg
Shipping Width 0.140m
Shipping Height 0.040m
Shipping Length 0.240m
Shipping Cubic 0.001344000m3
