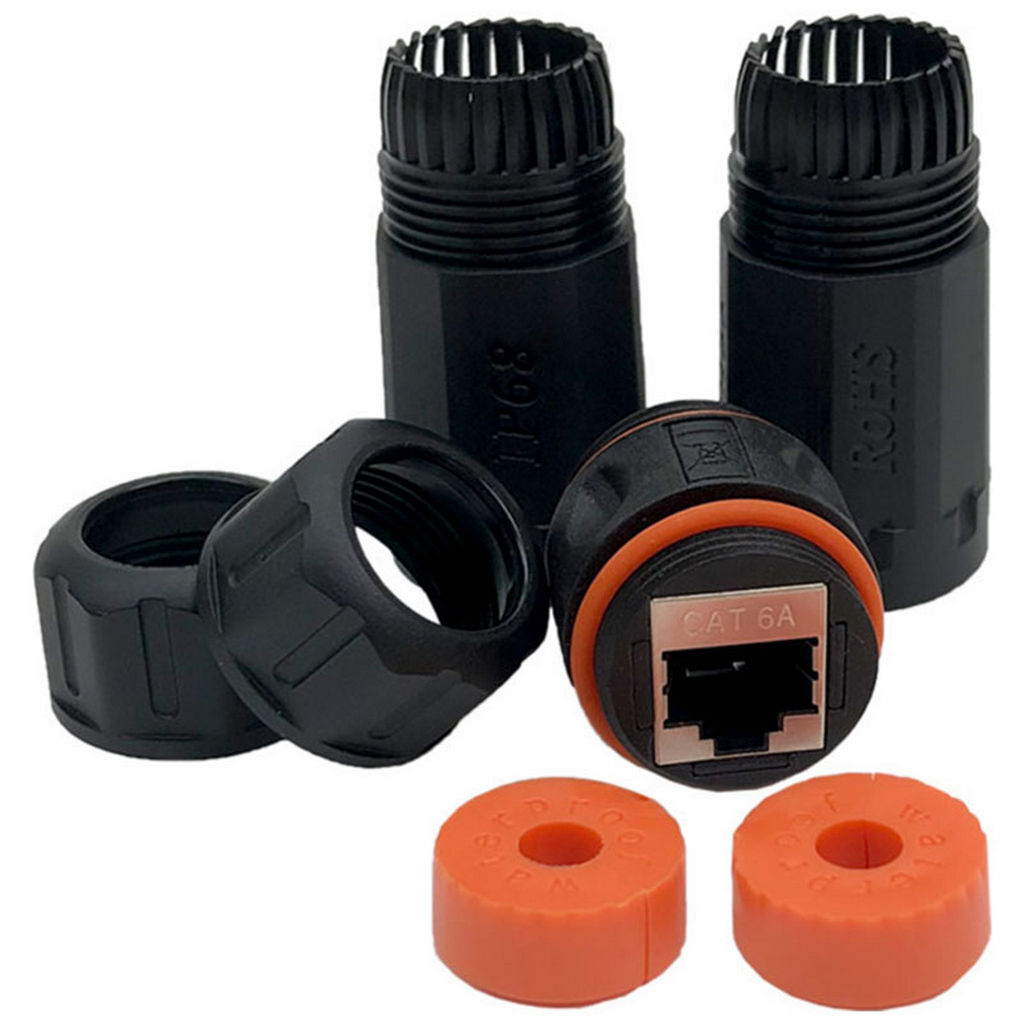

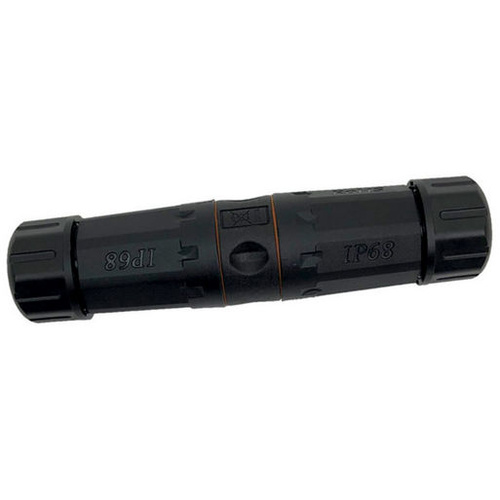

CAT6A WATERPROOF RJ45 INLINE COUPLER

Cat6A RJ45 inline coupler joins two premade patch leads together.

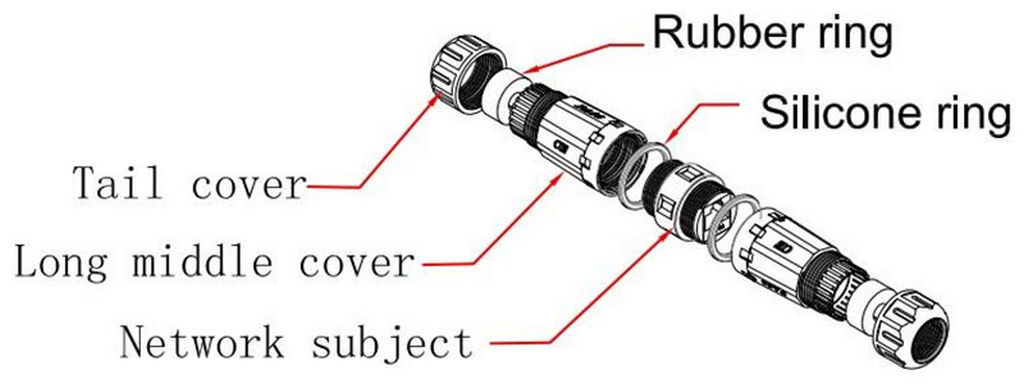

Easy to assemble.
IP68 waterproof rating.

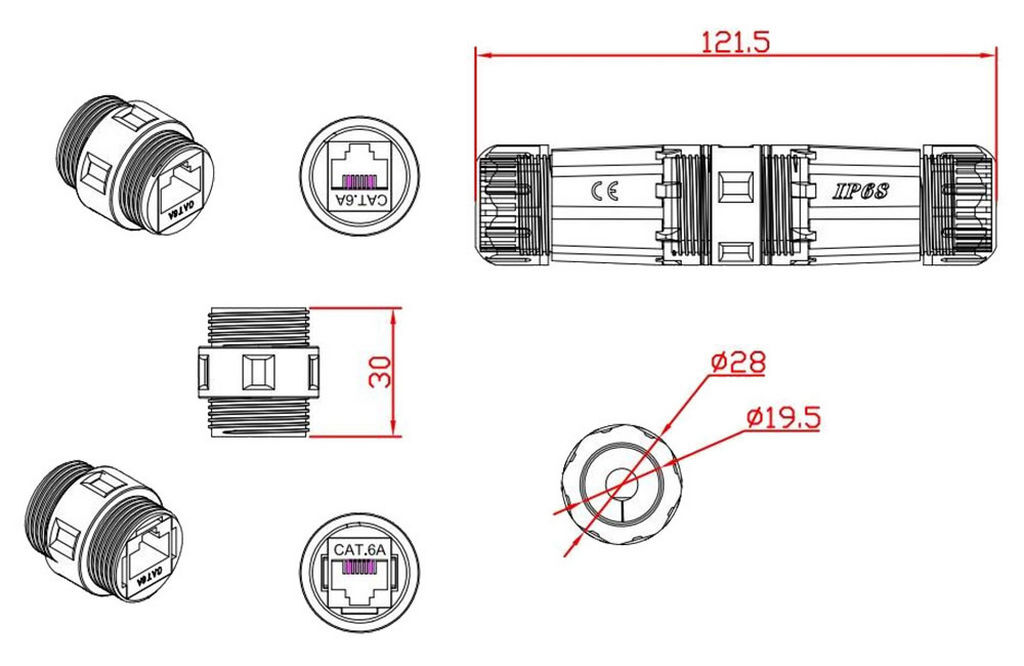

Suits Cable OD: 5-7.5mm.

Specifications:

  • Voltage rating: 125VAC RMS
  • Current rating: 1.5Amp
  • Contact resistance: 100 milliohms Max
  • Insulation resistance: 1000 Megohms Min @500VDC
  • Dielectric strength: 750 VAC RMS 60Hz, 1 Min
  • Storage: -40°C to 85°C
  • Operation: 0°C to 70°C
  • Housing material: PA66
  • Insert material: Flame Retardancy PBT
  • PCB material: FR-4 T=1.6mm
  • RJ45 jack contact: Phosphor bronze with nickel plating gold plated 50U
  • RJ45 jack life: 750 times minimum
  • Waterproof grade: IP68
  • Cable OD: 5-7.5mm

(RJ45J)

SKU RJ45J
Shipping Weight 0.5000kg
Shipping Width 0.120m
Shipping Height 0.010m
Shipping Length 0.150m
Shipping Cubic 0.000180000m3
