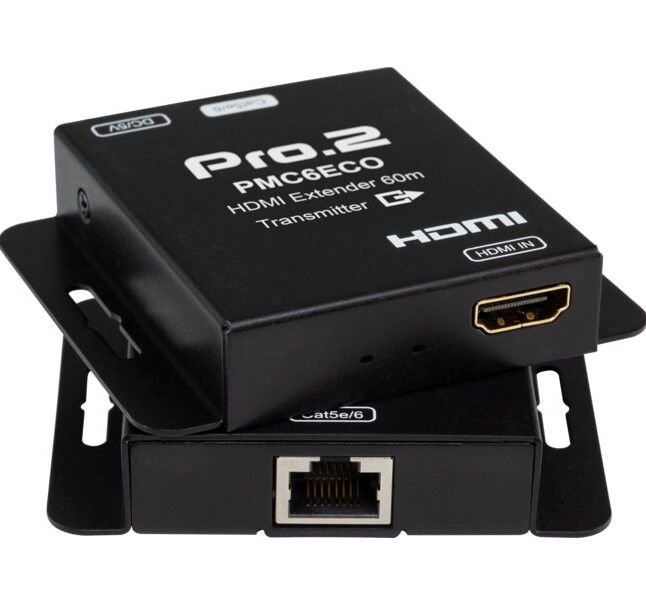

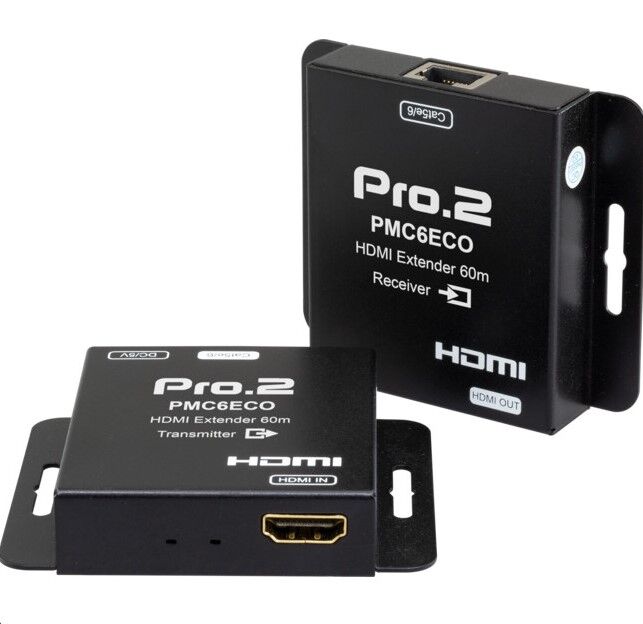

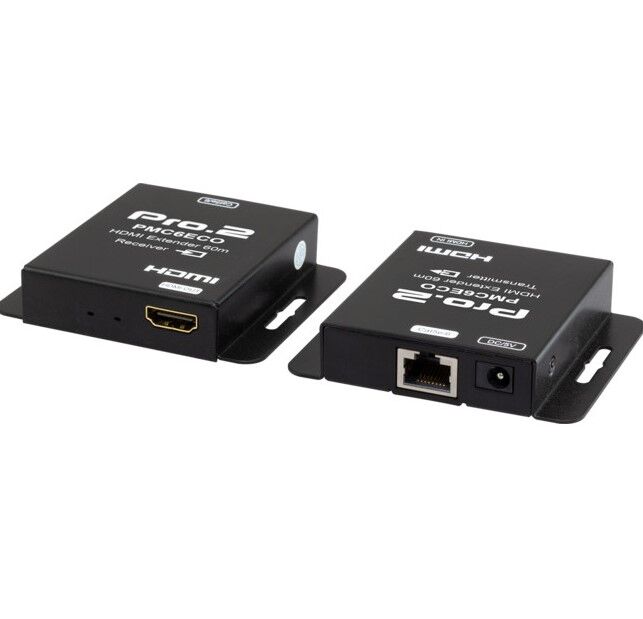

PMC6ECO HDMI Over Single Cat5e/6 Extender

This compact and simple mini HDMI extender kit allows you to extend high-definition audio and video signals from devices like Blu-ray DVD players, game consoles, and more, up to a maximum distance of 60 metres. It uses a single solid CAT5e/6 cable, making it perfect for routing through wall cavities. With its power-over-cable feature, only one power supply is needed at the transmitter end, eliminating the need for a separate power source at the receiver.

Features

  • EDID: Default 1080p
    pre-set resolution for standard Full HD
  • LPCM 2.0 48KHz audio
  • POC (Power over cable) receiver powered by transmistter
  • Distance: 60m
  • Plug and play with surface-mount design
  • High-definition resolution up to Full HD 1080p@60hz YUV4:4:4
  • Supports 3D

Specifications

  • Operating Temperature Range:0 to 40°C (32 to 104°F)
  • Operating Humidity Range:5 to 90%RH (No Condensation)
  • Input Video Signal: 0.5-1.0 Volts P-P
  • Input DDC Signal:5 volts p-p (TTL)
  • Supported Video Formats:DTV/HDTV:720P/1080i/1080P, 3D video
  • Video Output: HDMI, HDCP 1.4
  • Support Audio Format:LPCM 2.0 48Khz
  • Transmission Distance:up to 60m with single CAT5e/6
  • Power consumption: 2 watts (Maximum)
  • Power supply: 5V 1A DC
  • Dimensions: 79.3 (W) x 68 (D) x 16.5 (H) mm
  • Net Weight: 232g

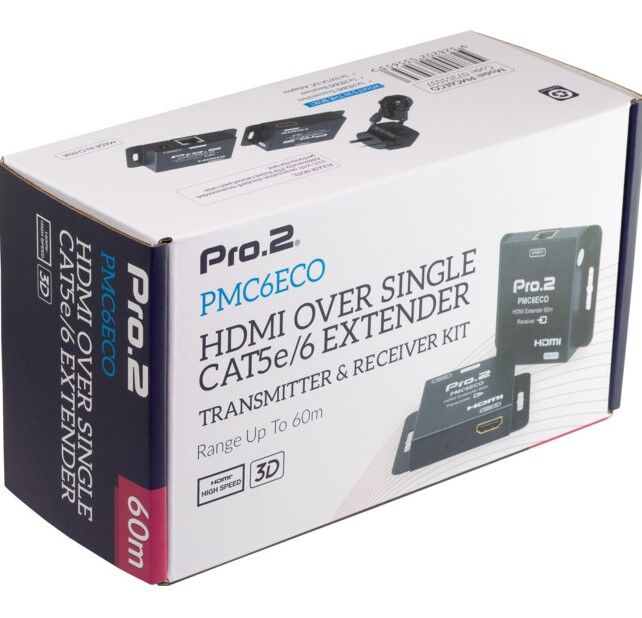

What is in the box?

  • PMC6ECO Main Unit:
    1x Transmitter & 1x Receiver
  • 1x 5V 1A DC power supply
  • 1x User Manual

(PMC6ECO)

SKU PMC6ECO
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
