60-100 Inch 100kg Low-Profile Fixed Bracket Kit 800x600 VESA For TCL + Large TVs

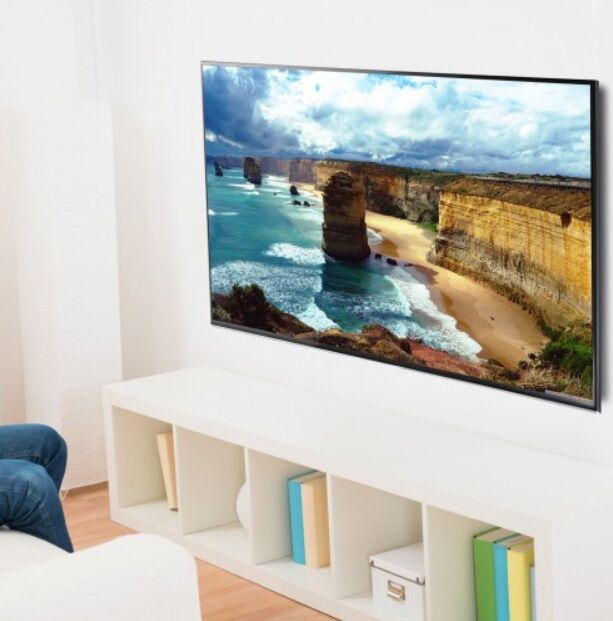

Mount your TV on the Wall

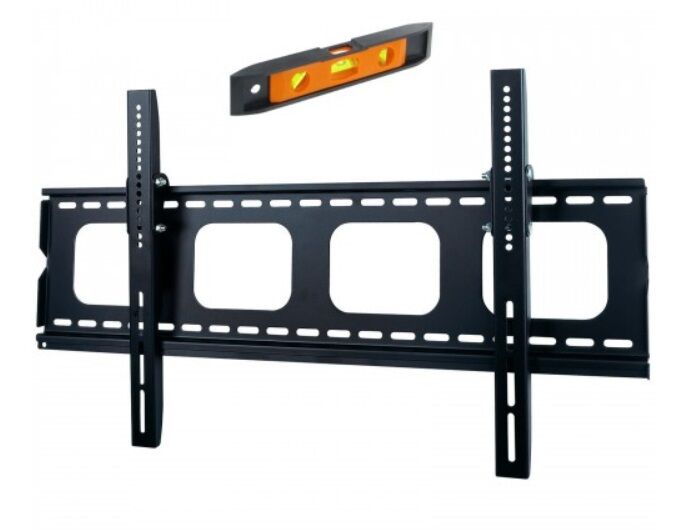

This XL TV bracket kit is the perfect way to wall mount your TV on your wall. It's heavy duty, adjustable, padlockable & easy to install. The kit includes the PBL102L tv bracket + specially designed extension arms to extend the maximum VESA pattern compatibility to 800x600.

Key Features:

• For screens approx 60-100"
• Holds up to 100kg
• Supports XL VESA patterns up to 800x600
• Suits most large TCL TVs

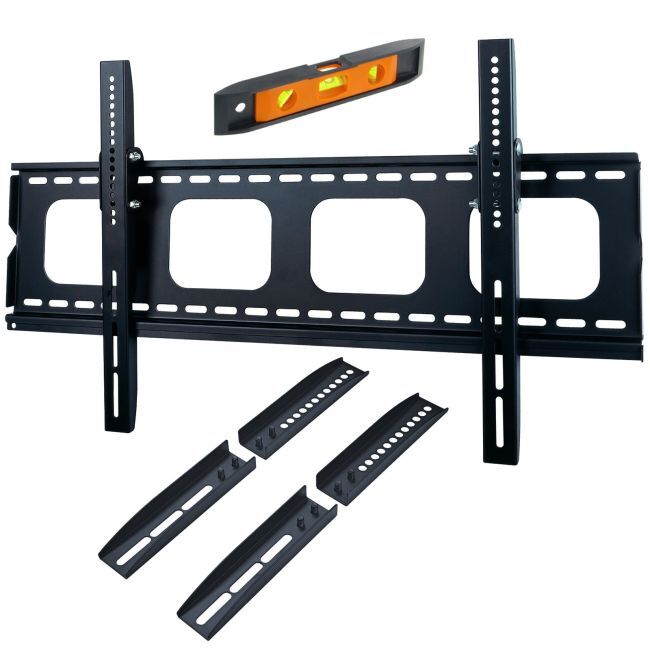

• Kit includes TV bracket & extension arms
• Slimline design
• Optional 5-degree tilt
• Easy to install
• Includes a bonus spirit level
• Designed to span Australian studs
• Includes most common screws
• Padlockable to prevent TV theft

Will it fit my TV?
This bracket is suitable for you if:
1. Your TV measures:
     • At least 920mm wide.
     • At least 610mm tall.
2. The four screw holes on the back of your TV are:
     • No more than 800mm apart horizontally (side to side).
     • No more than 600mm apart vertically (top to bottom).
3. Your TV weighs no more than 100kg.

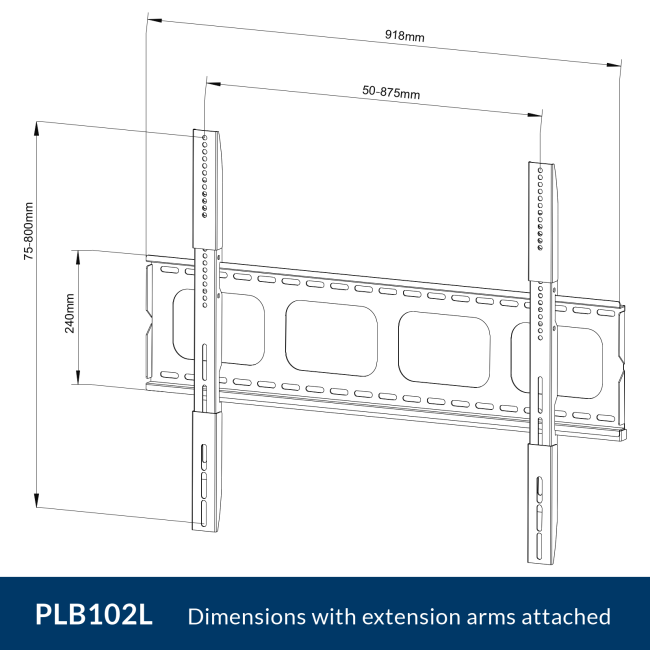

Extension Arms Installation

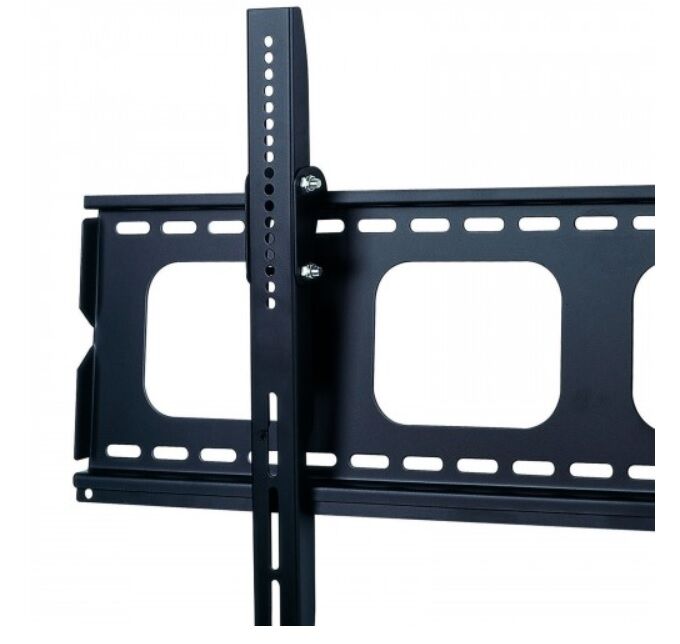

To attach the extension arms, place the threaded stud portion through the holes of your TV bracket arms. Slide a metal washer onto the threaded stud, and secure the extension arms by threading and firmly tightening one of the included nuts onto each stud. Both threaded studs of each extension must be attached to the TV bracket arms to ensure safe and proper installation.

IMPORTANT NOTE:
Both upper and lower extension arms must be installed on each arm of the TV bracket in order to keep the centre of balance equal. ie: Do not use only the upper or lower extensions on their own.

Extension Arms Installation Manual (PDF, 173KB)
