60-100 Inch 100kg Tilt-Adjustable Fixed Bracket Kit 800x600 VESA For TCL + Large TVs

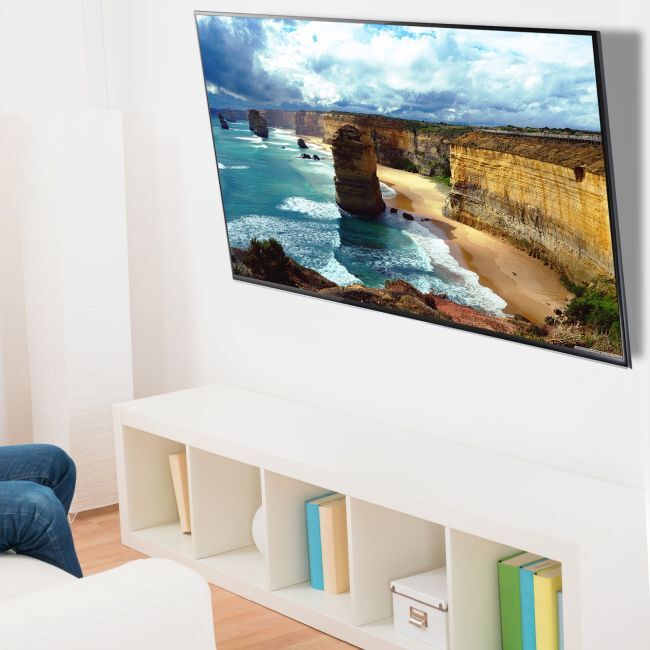

Mount your TV on the Wall
This XL TV bracket kit is the perfect way to wall mount your TV on your wall. It's heavy duty, adjustable, padlockable & easy to install. The kit includes the PBL103L TV bracket + specially designed extension arms to extend the maximum VESA pattern compatibility to 800x600.

Key Features:

• For screens approx 60-100"
• Holds up to 100kg
• Supports XL VESA patterns up to 800x600
• Suits most large TCL TVs

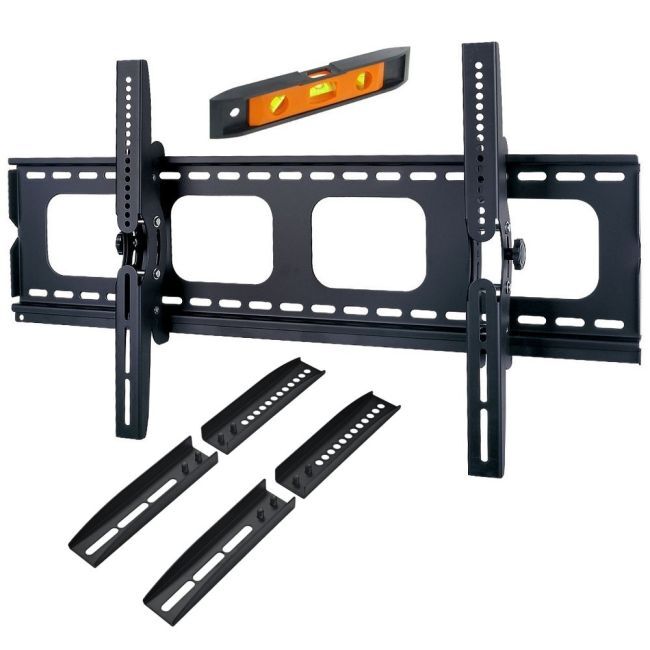

• Kit includes TV bracket & extension arms
• Optional Tilt up to 15 degrees
• Easy to install
• Includes a bonus spirit level
• Designed to span Australian studs
• Includes most common screws
• Padlockable to prevent TV theft

Mount your Big Screen Plasma or LCD on the wall.

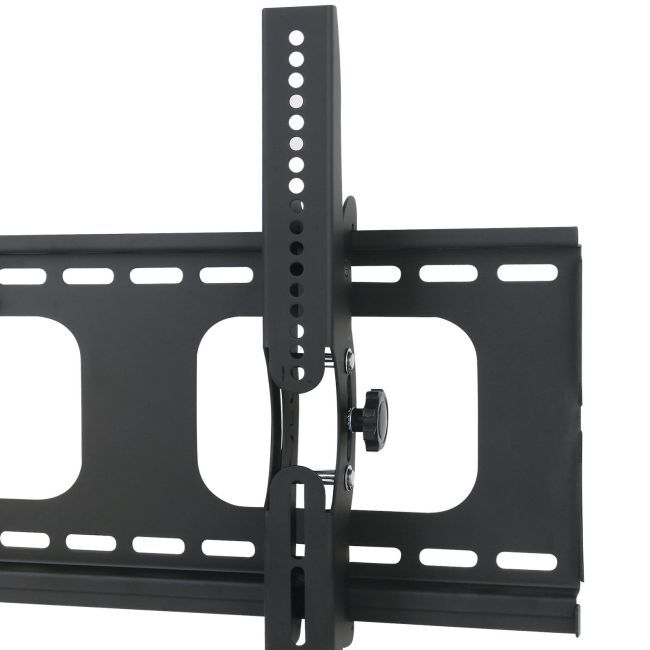

This high quality bracket is perfect for mounting your new LCD or Plasma to the wall. It's a tilt type bracket, which allows you to tilt your screen up to 15 degrees up or down to best suit your viewing position.

This model makes installation easy!
The ability to tilt upward means you can mount your screen first then hook it up. Other models can be hard to mount because you need to attach the cables before you lift the plasma up onto the bracket, which can be a lot harder than it sounds! This model can also take a lock for extra security!

Will it fit my screen?

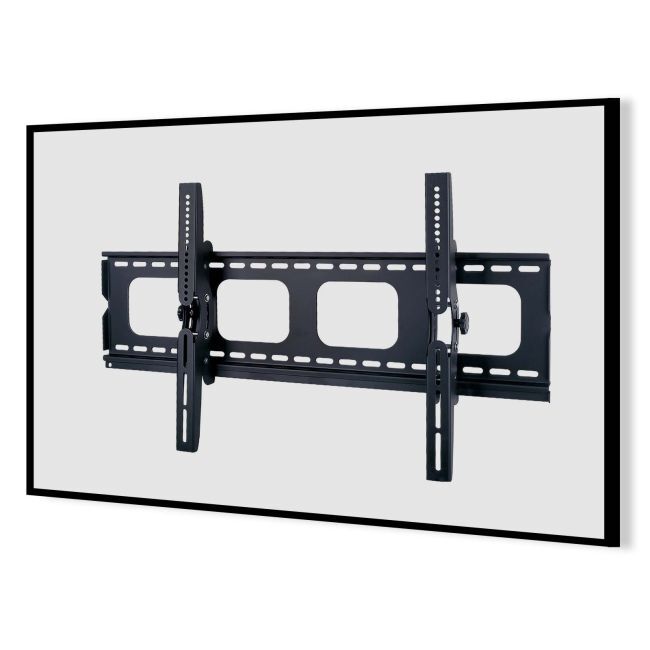

This bracket will fit your TV screen (and not be visible from front on) if your TV is:
- At least 920mm wide.
- At least 610mm tall.
The four threaded mounting holes on the back of your TV need to be:
- No more than 800mm apart side to side.
- No more than 600mm apart top to bottom.
Maximum TV weight capacity is 100kg.

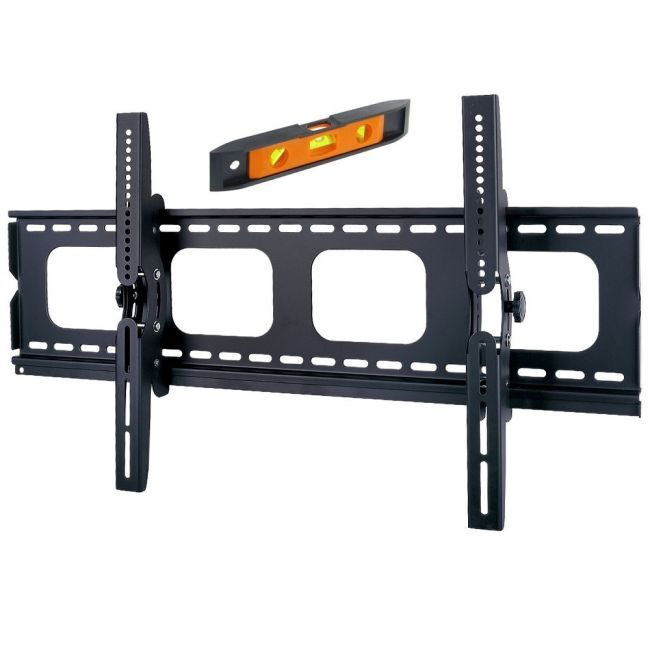

Bubble Level
This bracket includes a reusable bubble level / spirit level to assist with accurate installation of the bracket.

PLEASE NOTE: Some panels (including some Sony models) require M6 x 16mm bolts which are not included. This bracket includes a variety of screws/bolts which are suitable for most installations. Unfortunately, due to the enormous range of TV brands and models available, we're unable to guarantee that the included fixings will suit every installation. Please check manufacturers specifications of screen prior to installing.

As with all wall brackets it is essential that this bracket is fixed to a timber stud when mounting on plaster board walls.

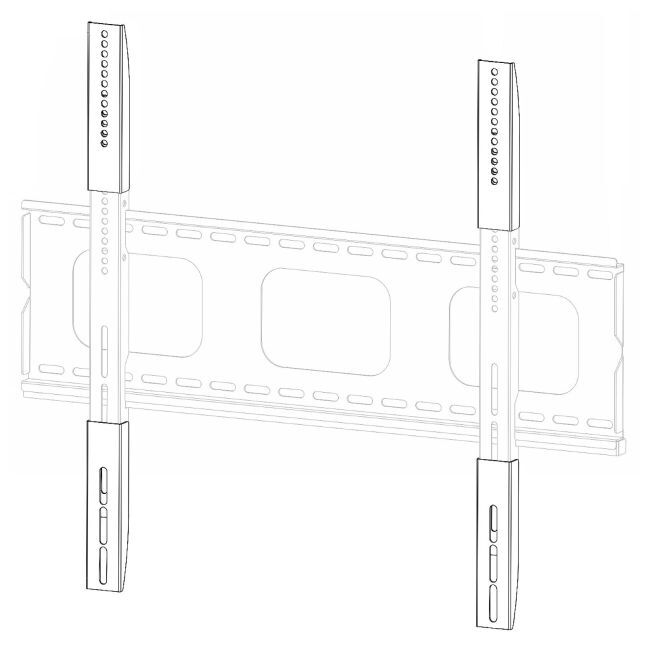

Extension Arms Installation

To attach the extension arms, place the threaded stud portion through the holes of your TV bracket arms. Slide a metal washer onto the threaded stud, and secure the extension arms by threading and firmly tightening one of the included nuts onto each stud. Both threaded studs of each extension must be attached to the TV bracket arms to ensure safe and proper installation.

IMPORTANT NOTE:
Both upper and lower extension arms must be installed on each arm of the TV bracket in order to keep the centre of balance equal. ie: Do not use only the upper or lower extensions on their own.
